Utilities
From the flight to a corridor model and a cutting list
We turn a corridor flight into the span list your clearance date needs. Every tree measured against the conductor, every tower inventoried, and the calculation behind each number when somebody asks for it.
What we do to it
Classified, vectorized, measured against your threshold
Masts become positions, conductors become lines, and each insulator suspension point becomes a key point on the geometry. The distance analysis runs on that, and what arrives is a span list with a number against every span.
Utilities come to us with a corridor and a date. What varies is the network — transmission or distribution, forested or open, flown or driven. What does not vary is the shape of the job. Separate the wire from what is growing toward it, turn both into geometry, and hand back something a clearance decision can be made from.
The corridor's own classes, with ground and the vegetation tiers included.
Mast positions, conductor runs and insulator suspension points.
A 3D model of the assets, and the distance analysis run on it.
On real data

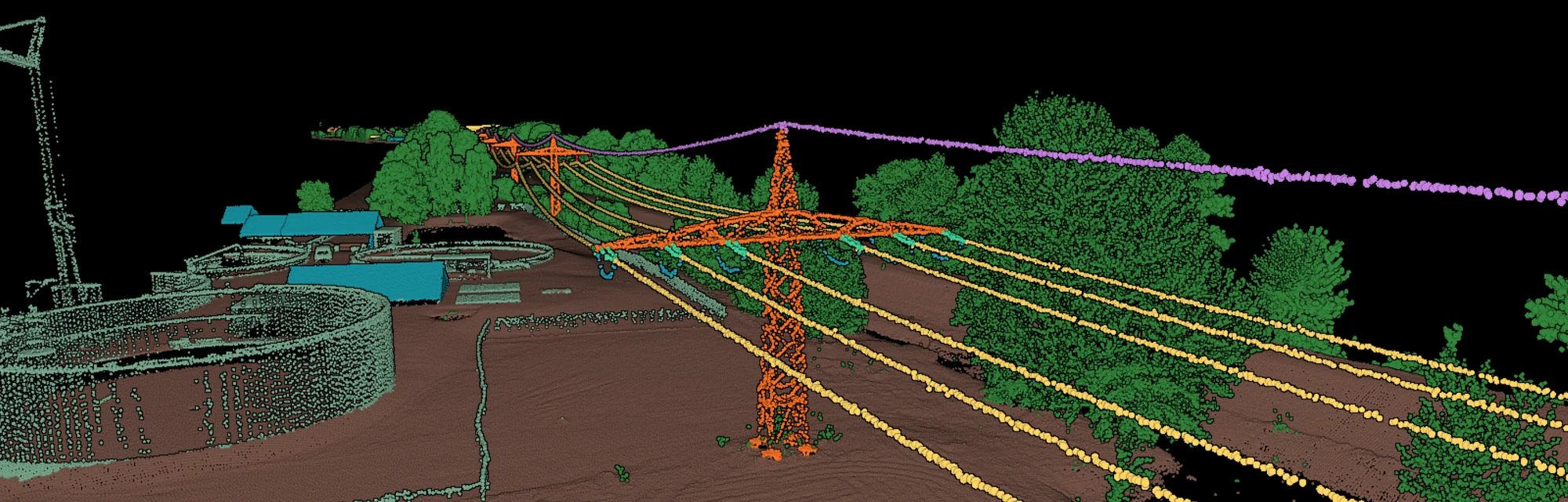

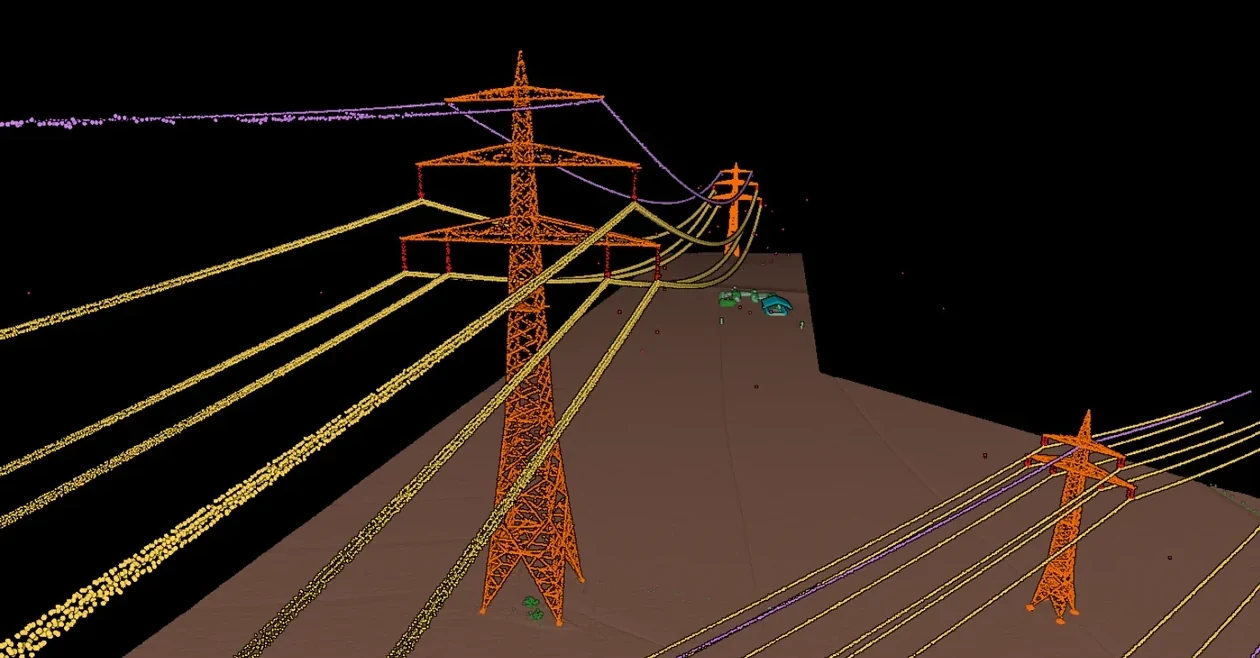

The corridor, class by class
Conductors, shield wire, insulators, towers and the ground under them come back separated, which is what every later step is built on.

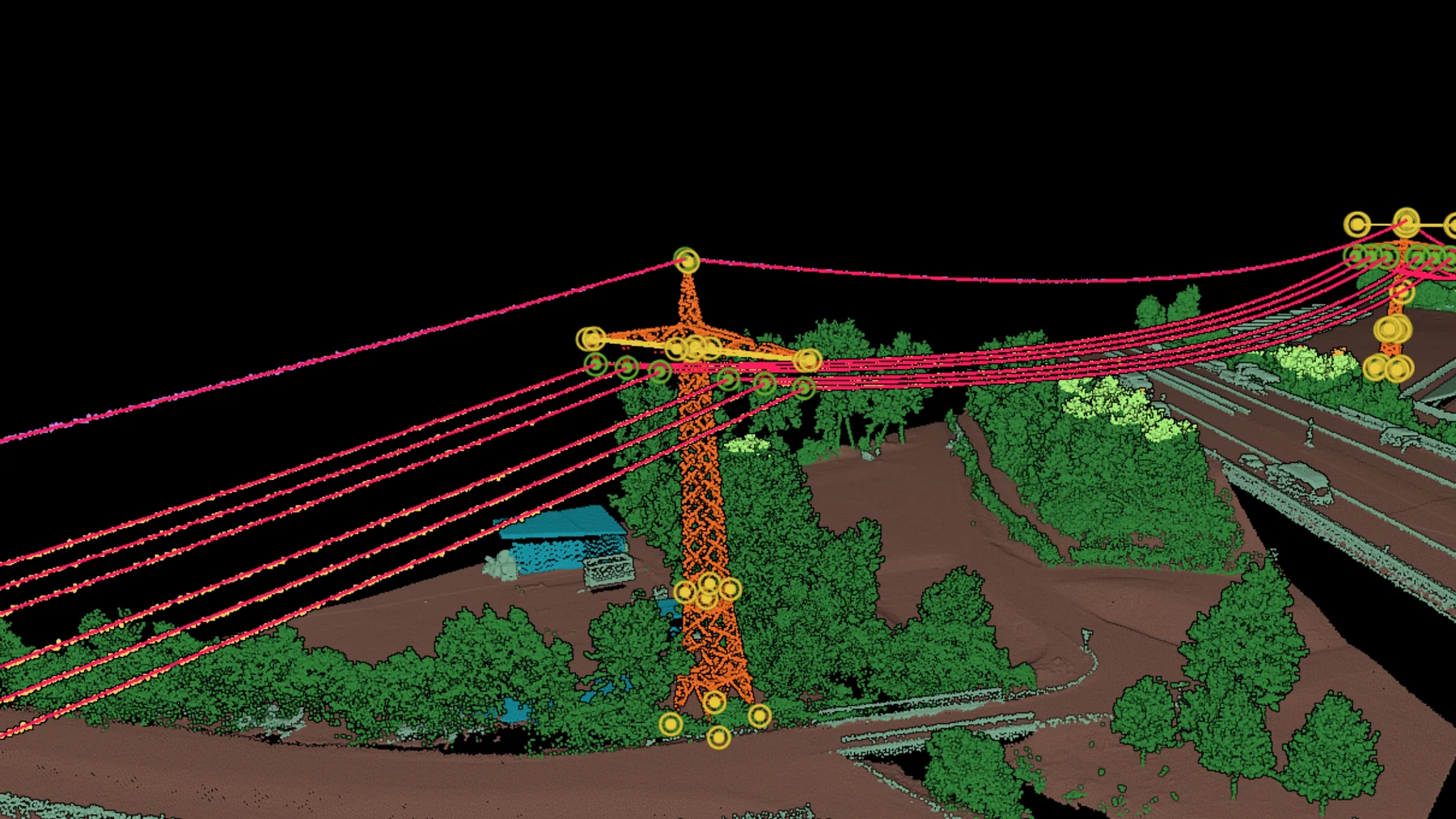

Every span as a line, every attachment as a point
The conductors come back as catenaries, and each suspension point is a node on the line it hangs from. Towers carry their own geometry. That is the model a clearance calculation runs on.

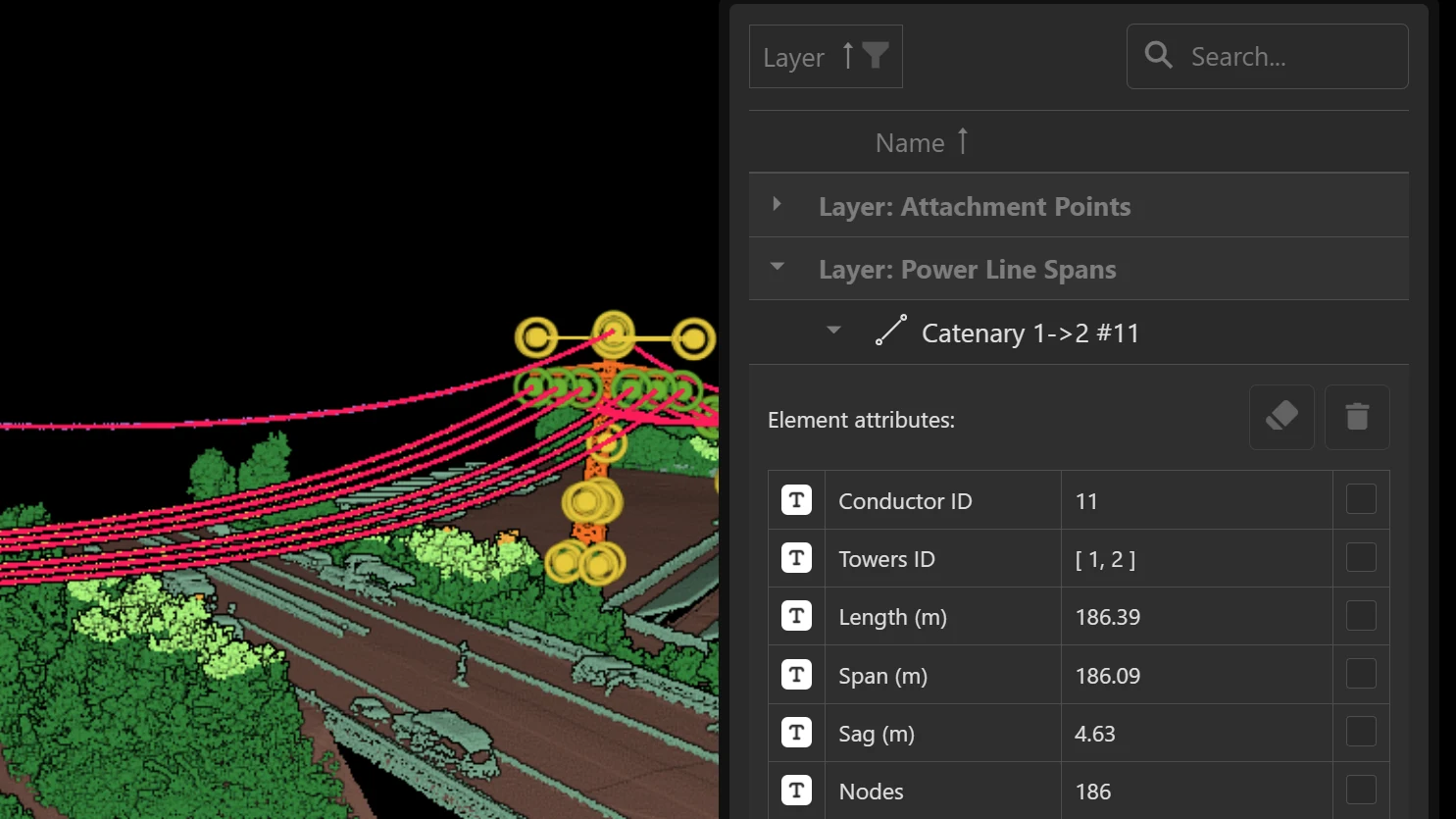

What you know about every span
Its length, its sag, the tower at each end and the conductor it belongs to, written on the object itself. A clearance report is built from exactly that.

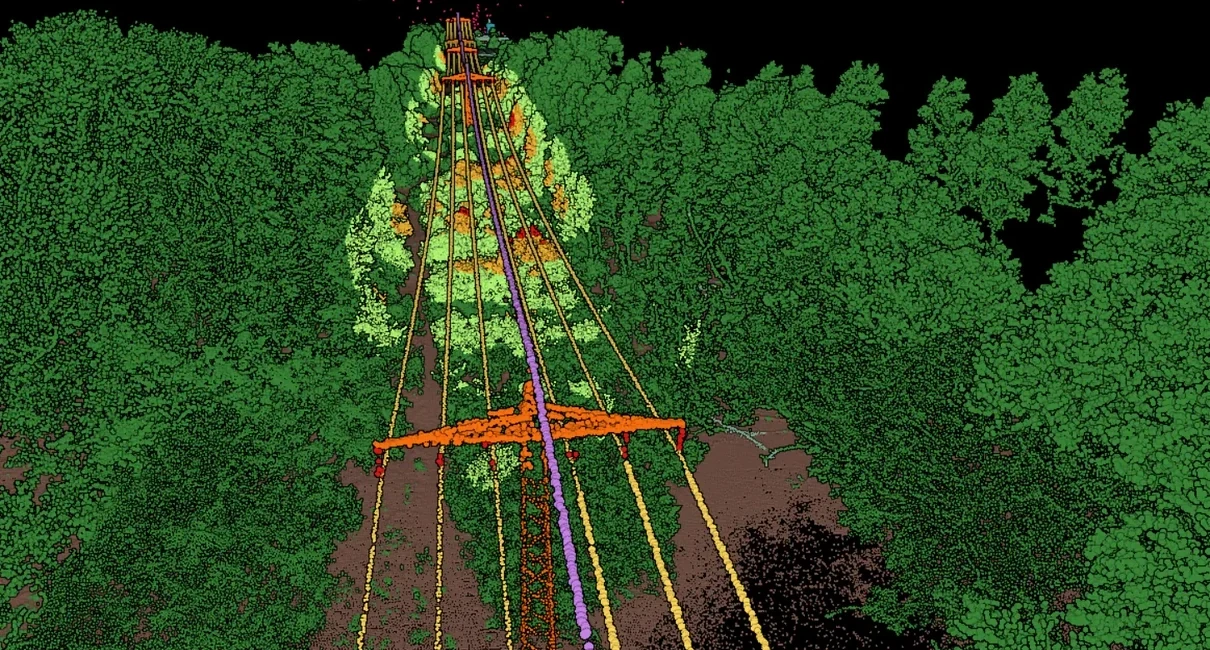

Vegetation graded by its distance to the wire
What is inside the threshold comes back as its own classes, banded by how close it is, so the cutting list comes straight out of the survey.

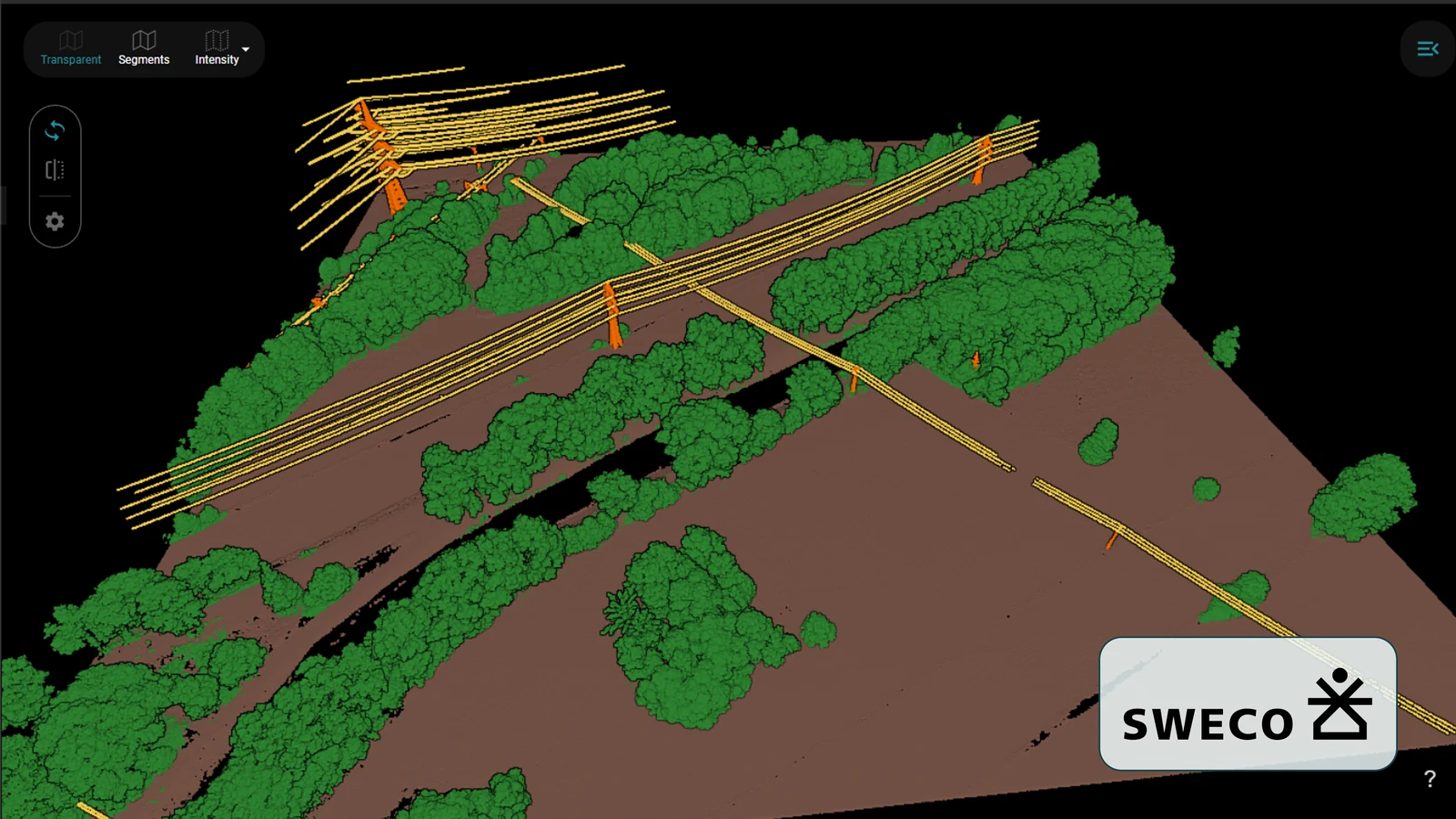

Built for whole networks
The power line classifier runs across whole networks. Customers use it in the platform, through the API and as a managed project, each on a catalog retrained to their own inventory.
Deliverables
What the survey is for
Every point in the cloud carries a class. That is what the filtering and the cleaning run on, and what every product under it is built from.
Every tree measured against the conductor, span by span, back as a pass or a fail with the number behind it.
The spans ordered by severity, so a limited cutting budget goes where it buys the most.
The same corridor from two campaigns compared class by class, which shows where the next breach happens.
The height of the lowest conductor over the terrain, the statutory number and the input a thermal rating needs.
One row per tower, with its position and what is mounted on it.
What lands in your hands
The output
- Airplane
- Helicopter
- Drone
airborne lidar, at large scale
- LAS
- LAZ
- DXF
- Shapefile
- CSV
- GeoJSON
classified cloud and objects
The class catalog
ALS classifier optimized for power line corridors. If no CRS is specified, the point cloud unit must be meter.
13 classes
recommended
- Intensity
- Return Number
- Number of Returns
required in the file
IDs follow the ASPRS numbering in the LAS specification. Classes above 18 are ones we added for this catalog.
| ID | Class |
|---|---|
| 1 | Unclassified |
| 2 | Ground |
| 3 | Low Vegetation (<2m) |
| 4 | Medium Vegetation (2-5m) |
| 5 | High Vegetation (>5m) |
| 6 | Building |
| 14 | Power Lines |
| 15 | Transmission Tower |
| 18 | Noise |
| 20 | Strain Insulators |
| 21 | Jumpers |
| 22 | Other |
| 23 | Suspension Insulators |
Beyond the standard catalog
Custom model training and finetuning for your dataset
We train on your data and tune the model to the specification you work to. Classes get added, split or cut. A photogrammetric cloud gets a model of its own.
See it on your own data
Send a sample and we will run the classifier on it, so you can judge the result rather than the description.
